RYA-ZC 1300 High Speed Semi-Automatic Pressure Vacuum Forming Machine
RYA-ZC1300 高速半自動成型機

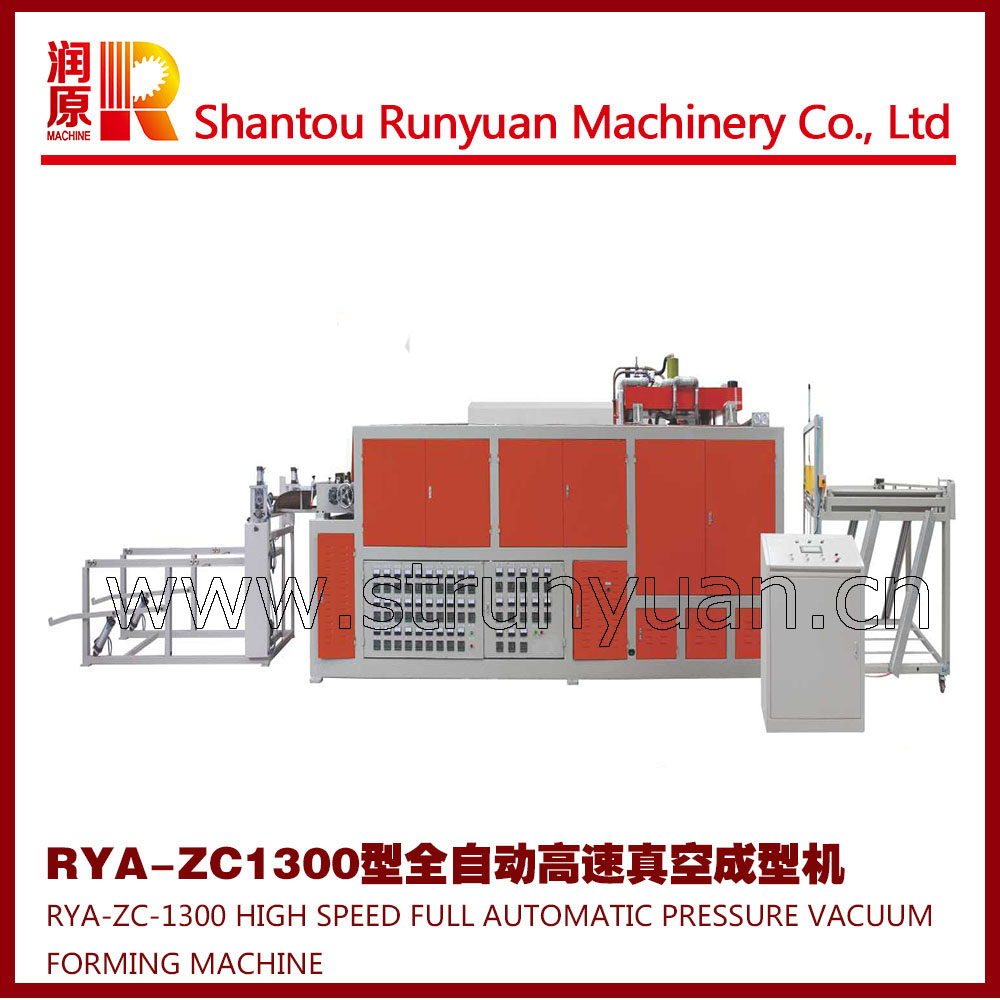

Machine Picture:機器圖片
Structural characteristics: 結構特性
RY series thermoforming machine groups are developed by our company. It integrates vacuum forming (negative pressure forming), press forming (positive pressure forming), mold forming and comprehensive forming. Products can mainly form with vacuum, also with compressed air, dies pressure and synthetic method. It can produce lunch box, tray, plate, etc. which material is foam PS. This machine group possesses reliable stability, large forming area, high production and automatic degreed in plastic manufacturing industry is easy to operate. It is known as excellent as excellent as excellent as forming.
RY系列熱成型機是我公司開發的。真空成型(負壓成型)、壓力成型(正壓成型)、模具成型、綜合成型于一體。產品主要采用真空成型，也可采用壓縮空氣、模具壓力和合成方法成型?？缮a(chǎn)以泡沫PS為原料的飯盒、托盤、盤子等，本機組具有穩定可靠、成型面積大、產量高、自動化程度高等特點，在塑料制造行業中操作方便，被稱為優秀的成型機。
Machine Parameter: 機器參數
Model 型號 | RYA-ZC 1300 |
Rated Power 額定功率 | 90kw |
Sheet Width 適用片材寬度 | 800-1080mm |
Max Forming Area *成型面積 | 1000×1300mm |
Capacity 生產力 | 17-22 time/min (adjustable) 17-22次/分鐘（可調整） |
Air Consumption 耗電量 | 0.4-0.6mpa2m3 |
Max Forming Depth *成型寬度 | 130mm |
Dimensions 尺寸 | 10500×1900×2400 |
Weight 重量 | 10T |

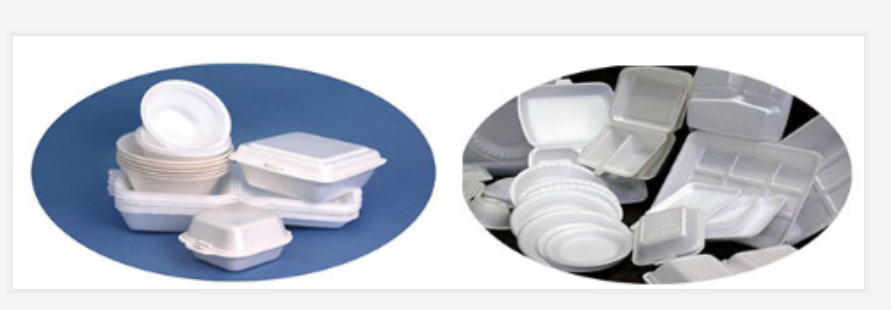

Samples Picture:樣品圖片
Factory Workshop Picture:工廠車間圖片
